An exploration of personal protective equipment and social distancing.
Design and Making Across Disciplines
Jenny Sabin
In Collaboration With:
Irene Perdejordie, Danielle Boris, Yuan Li
Product Design
Mask + Work Station
Cornell University
FA 20’

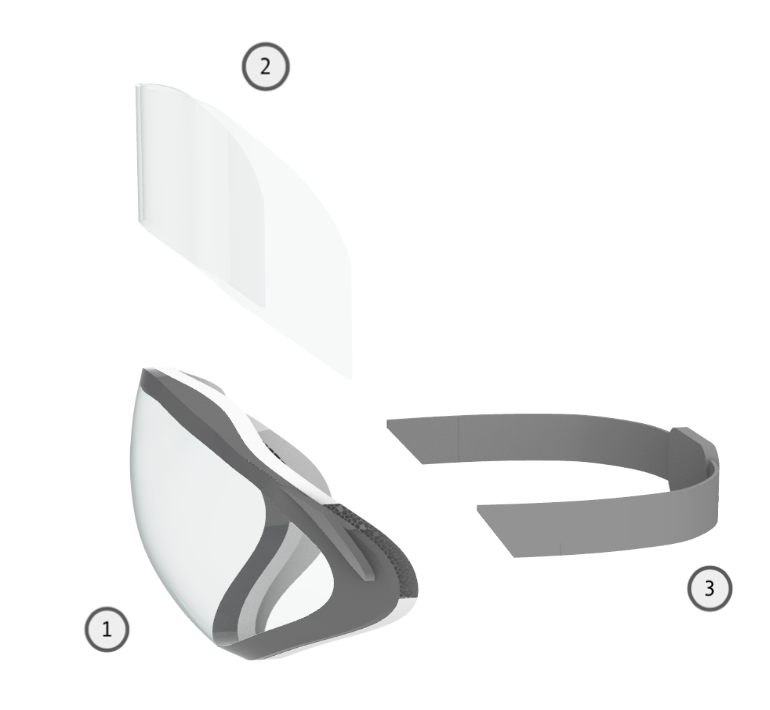

Kit of Parts
The mask can be disassembled into three main components: face guard, face shield and strap. Each component can be customized to the user’s liking by altering the color, fit and material.
Custom Fit
Face scans are taken to create a perfect match with a product that fits the consumer’s face. By mapping facial features with x and y coordinates we’re able to adjust the shape of the mask to ensure a snug and comfortable fit.

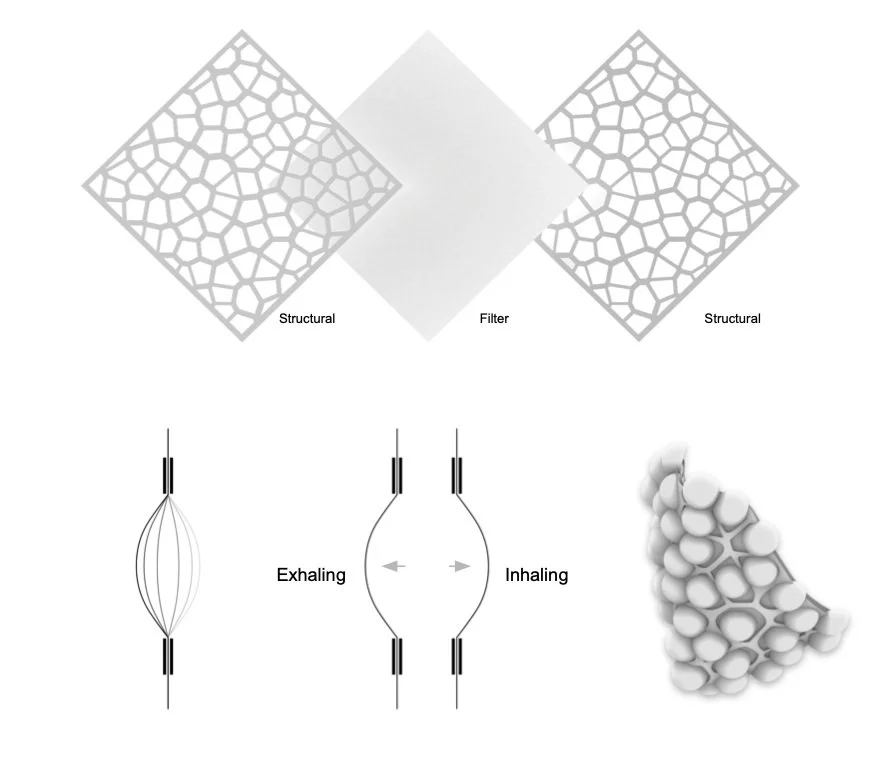

Air Filtration
The filtration cartridge is located on the side of the left side of the mask. An n95 filter is held in place by two structural grids. The patterning on the grid is inspired by the cutaneous respiration of tree frogs. By allowing the filter to expand and contract against the gridded structure the mask enhances airflow while breathing.
Colormetric Sensor
Using color to inform the user of their daily interactions. The mask is equipped with a motion sensor that detects when others get close to you. As more people come into contact with the user the tab will gradually start to show color. This is a personal contact tracing feature that gives the user a sense of their risk level. When the tab has turned completely blue its time to replace the filter.
Low Sensitivity
High Sensitivity
Heat Pad
Heat Pad Activated

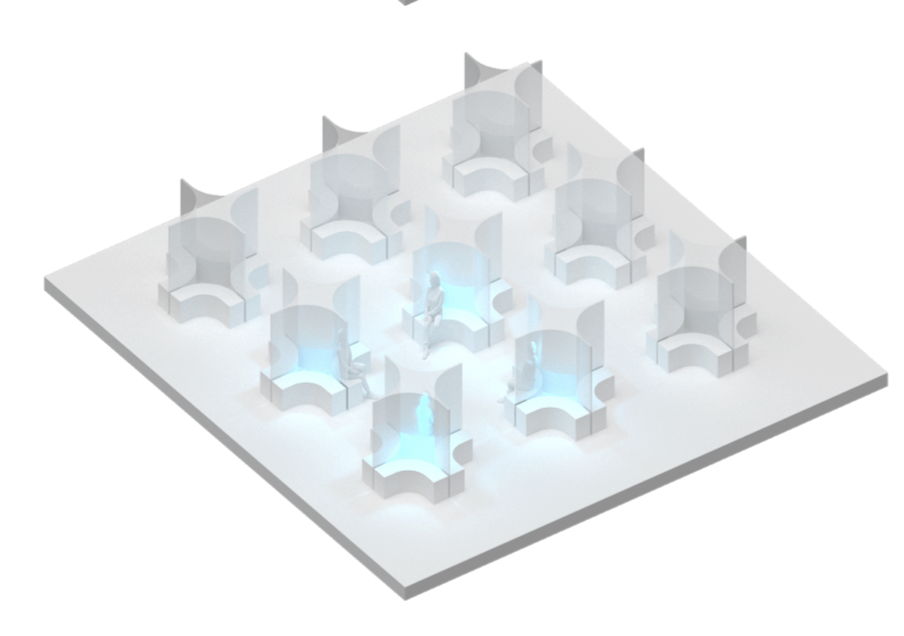

Work Stations
A work station that uses motion sensors and light to display occupancy. Each station incorporated a curved transparent OLED screen that acts as both a monitor and space divider. When not in use the screen becomes transparent to allow for safe collaboration with neighboring working while protecting personal air space.

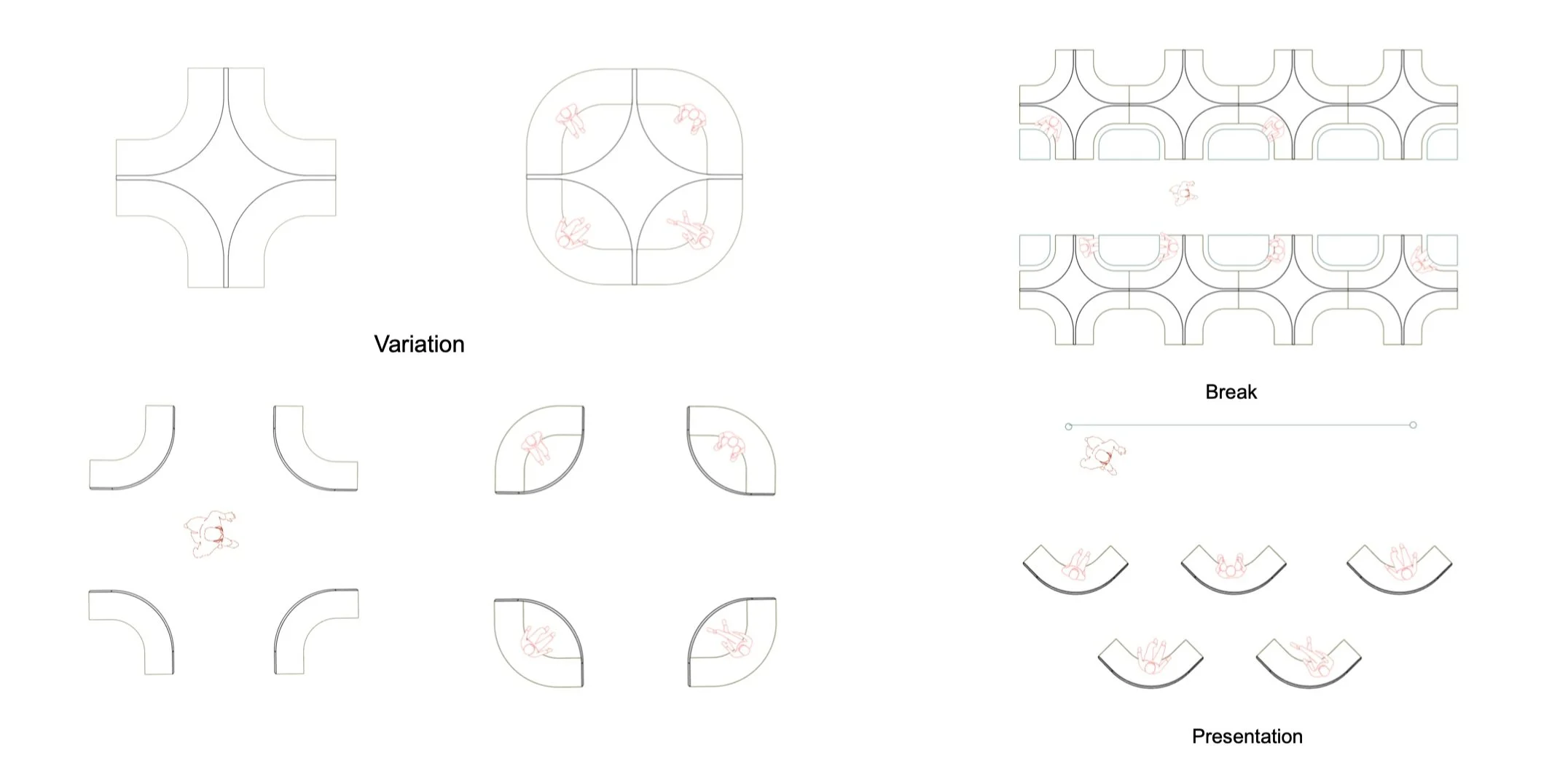

Spatial Walkthrough
